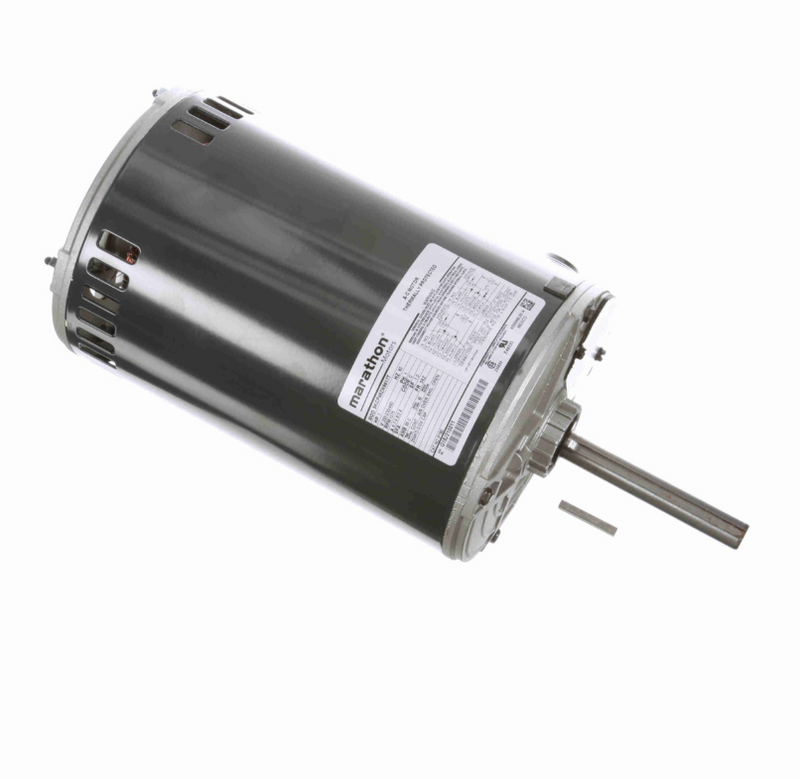

P190 Marathon Motor 1 HP 208-230/460v 56z Frame
by Marathon
Original price
$465.00
-
Original price
$465.00
Original price
$465.00
$465.00
-
$465.00
Current price
$465.00
This is a new Marathon motor part# P190. This motor is a new motor but it is old inventory so the shaft has some rust spots on it.
| Phase: | 1 | Output HP: | 1 Hp |
| Output KW: | 0.75 kW | Voltage: | 200-230/460 V |
| Speed: | 1075 rpm | Service Factor: | 1 |
| Frame: | 56Z | Enclosure: | Open Enclosed |
| Thermal Protection: | Automatic | Efficiency: | 68 % |
| Ambient Temperature: | 65 °C | Frequency: | 60 Hz |
| Current: | 6.7-6.8,3.4 A | Power Factor: | 0 |
| Duty: | Continuous | Insulation Class: | B |
| KVA Code: | C | Drive End Bearing Size: | 6203 |
| Opp Drive End Bearing Size: | 6203 | UL: | Recognized |
| CSA: | Yes | CE: | N |
| Number of Speeds: | 1 |
Availability:
Only 1 left!
