HD42AR224 Carrier Evergreen Genteq Replacement X13 Blower Motor 1/3 HP 115V / 208-230v
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$250.00
$250.00
-
$250.00
Current price
$250.00

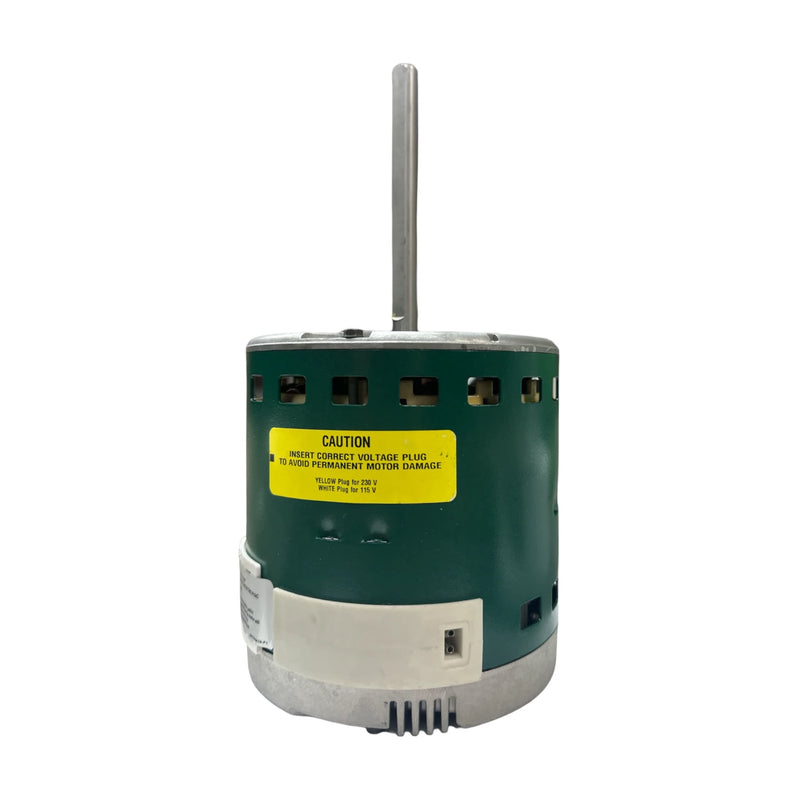

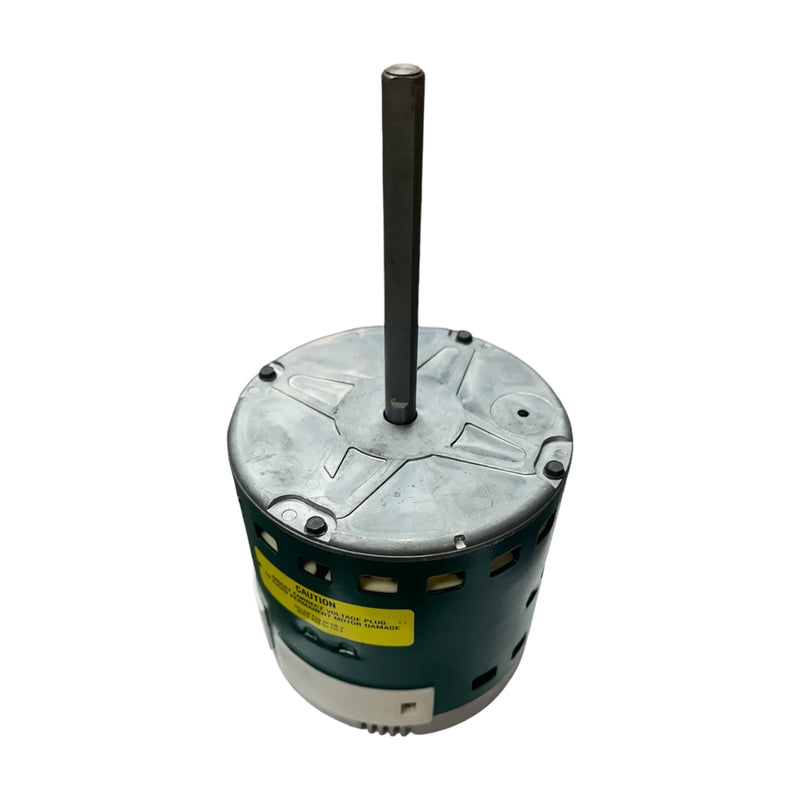

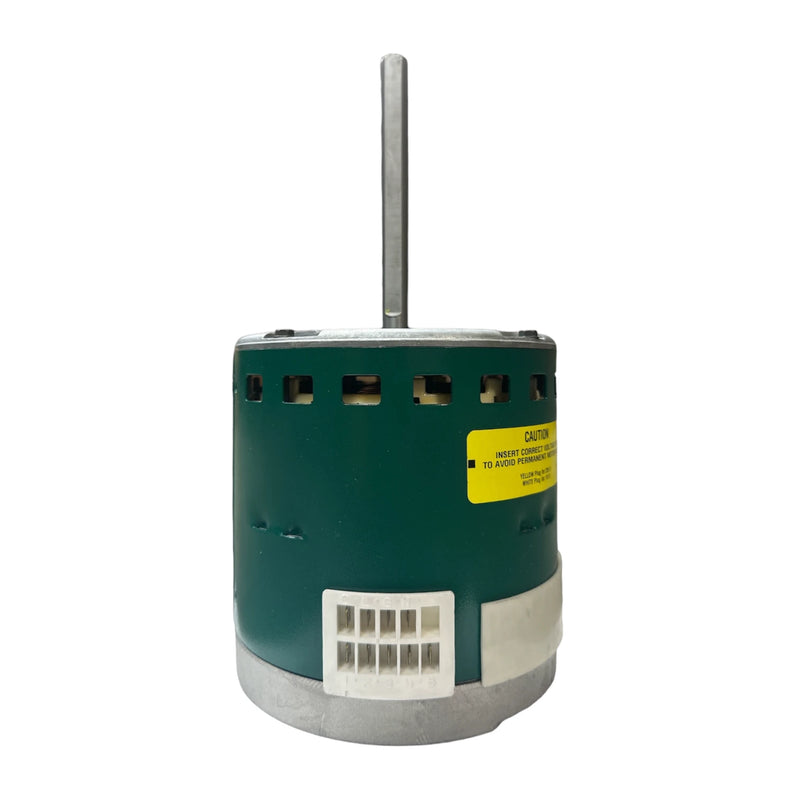

This is a brand new Genteq Evergreen X13 blower motor part# 6203X. This is an aftermarket replacement for Carrier part# HD42AR224
- Evergreen EM - Dual Voltage Constant Torque ECM Replacement Blower Motor
- Pre-programmed at the factor * Ready to use out of the box * Increase first-time completion * Rotation sensing technology
- 5.6" Diameter - 48 Frame, Electronically Commutated (ECM), Electronically Protected
- Up to five constant torque settings controlled by 24 VAC inputs
- Fully variable (PWM compatible) from 600-1100 RPM
- Open Air Over, Class B Insulation, 55°C Ambient
- Ball Bearing
- Shaft: Single, 1/2” diameter, 5” length, 4.5” single flat
- 42" Leads
- Belly Band Mount (Belly Band Not Included)
| Phase: | 1 | Output HP: | 1/3 Hp |
| Output KW: | 0.25 kW | Voltage: | 115/208-230 V |
| Speed: | 1050 rpm | Service Factor: | 1 |
| Frame: | 48 | Enclosure: | Open Air Over |
| Thermal Protection: | No Protection | Ambient Temperature: | 40 °C |
| Frequency: | 60 Hz | Current: | 4.1/2.8 A |
| Duty: | Continuous Air Over | Insulation Class: | B |
| UL: | No | CSA: | N |
| CE: | N | Number of Speeds: | 1 |
