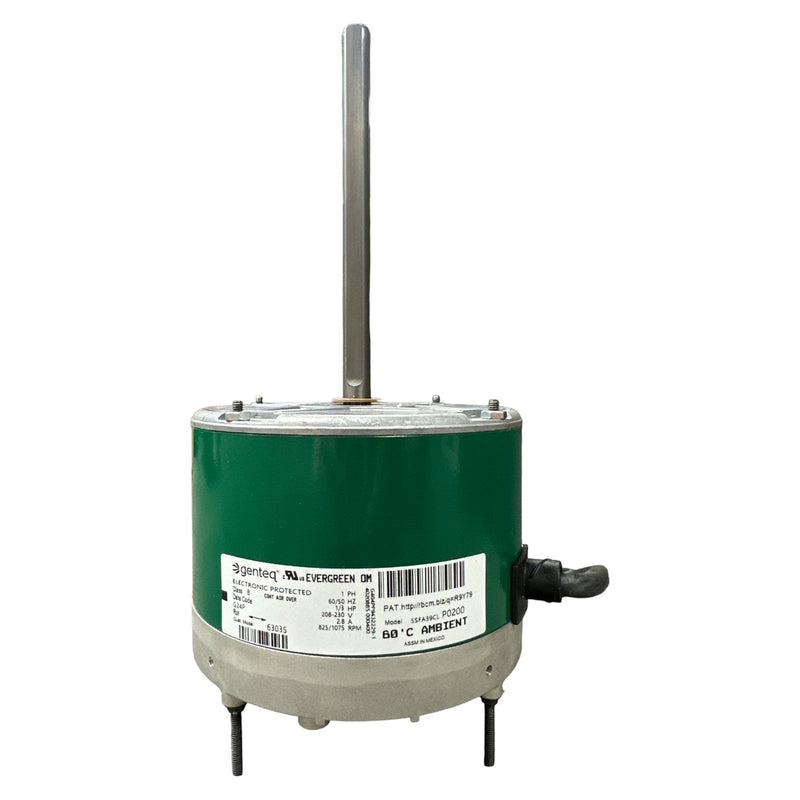

Genteq 6303S Evergreen Condenser Fan Motor 1/3-1/12 HP ECM 208-230V
Original price
$165.62
-
Original price
$165.62
Original price
$165.62
$165.62
-
$165.62
Current price
$165.62
Genteq EVERGREEN OM Condenser Fan Motor, 1/3 HP, 1 Ph, 60 Hz, 208-230 V, 825/1075 RPM, 2 Speed, 48 Frame, CLOSEDAO - 6303S.
Key Features:
- Evergreen OM - Retrofit Condenser Fan Motor (Replaces PSC and Shaded Pole Motors)
- Electronically Commutated (ECM), Electronically Protected
- 1/3 HP (Replaces 1/3-1/12). Two Operating Speeds (Constant Speed), 1075 RPM replaces motors rated 1000-1100 RPM, 825 RPM replaces motors rated 800-850 RPM
- 208-230 Voltage (Allowable Voltage Range 196-264), Single-Phase Input, 50-60 Hz, Totally Enclosed Air Over
- Class B Insulation, -20 to 60°C Ambient
- Rotation: Reversible (Factory Set To CCW Lead End)
- Permanently Lubricated Ball Bearing
- Shaft: 1/2” Diameter, 6.5” Length, 6” Single Flat
- Leads: 54” Length With 1/4” Fast On Terminals, Ground Wire #10 Eyelet
- Mounting: Horizontal or Vertical Shaft-down, Belly Band (Not Supplied With Motor), Extended Clamp Bolts, or OEM Mounting Holes
Nameplate Specifications
| Phase: | 1 | Output HP: | 1/3 Hp |
| Voltage: | 208-230 V | Speed: | 825/1075 rpm |
| Service Factor: | 1 | Frame: | 48 |
| Enclosure: | Totally Enclosed Air Over | Thermal Protection: | Thermally Protected |
| Ambient Temperature: | 40 °C | Frequency: | 60 Hz |
| Current: | 2.8 A | Duty: | Continuous Air Over |
| Insulation Class: | B | UL: | No |
| CSA: | N | CE: | N |
| Number of Speeds: | 2 |
