ESP-0L50EM2 Condensing Unit Bearing Motor 50W 230V

ESP-0L50EM2 Condensing Unit Bearing Motor 50W 230V

by Mars Motors & Armatures, Inc. (Jard)
$99.00 - $99.00
$99.00
$99.00 - $99.00
$99.00

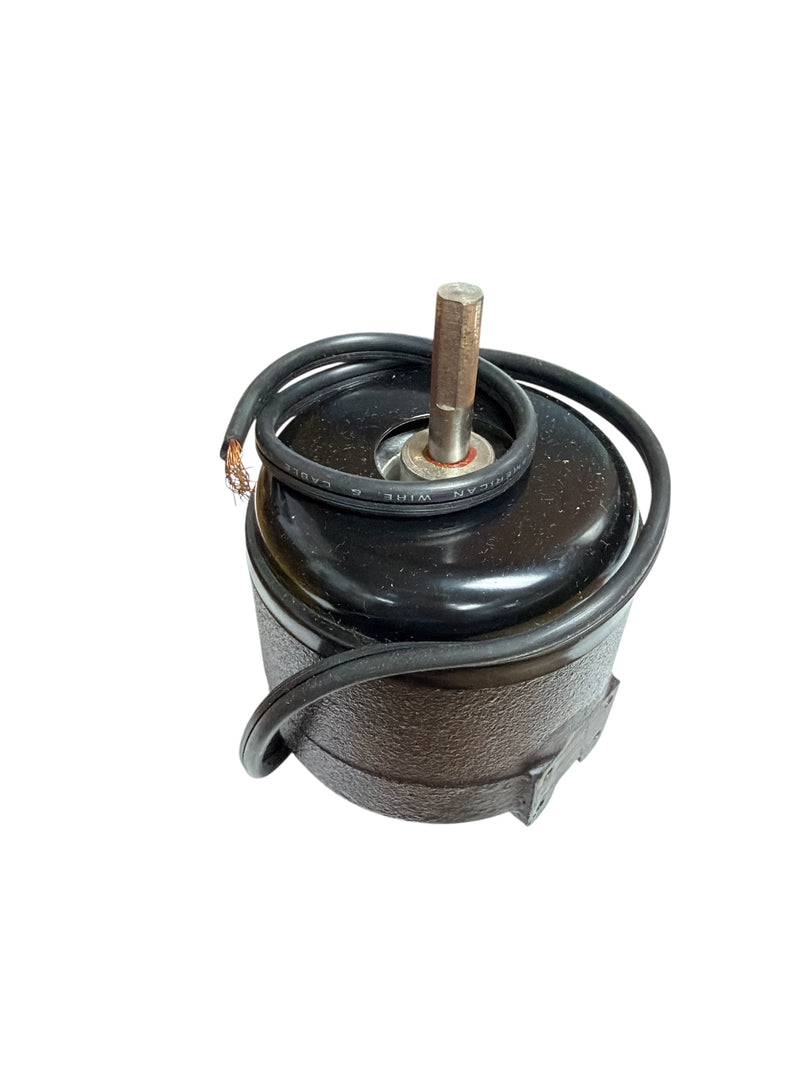

This is a brand new Condensing Unit Bearing Motor Part Number: ESP-0L50EM2 / 00503

Also replaces old Gemline Part Number: EM35002

EM&S High Efficiency Shaded Pole Motors, Cast Iron Unit Bearing, Single speed, End or side pad mountingSmooth Flatted Shaft. Heat the isolated oil pump and reservoir

Specifications:

Motor Type: Shaded Pole; Enclosure: TEAO; HP (Max.): 50 W; Voltage: 230; Mounting Pad/Bracket; Speeds: 1 Hz, 60; Rotation: CW; RPM Range: 1550; NEMA Frame Size: 51; Phase: Single; Standards: UL/CSA; FLA: 0.85; Bearing Unit Lead Length (in.): 22; Thermal Protection: Yes; Ambient Deg C: 40; Ins. Class B Shaft Dia. (in.) 3/8 Capacitor Included No Shaft Length (in.) 1.5 Service Factor 1.0 Duty Continuous.

Availability:
Only 1 left!
