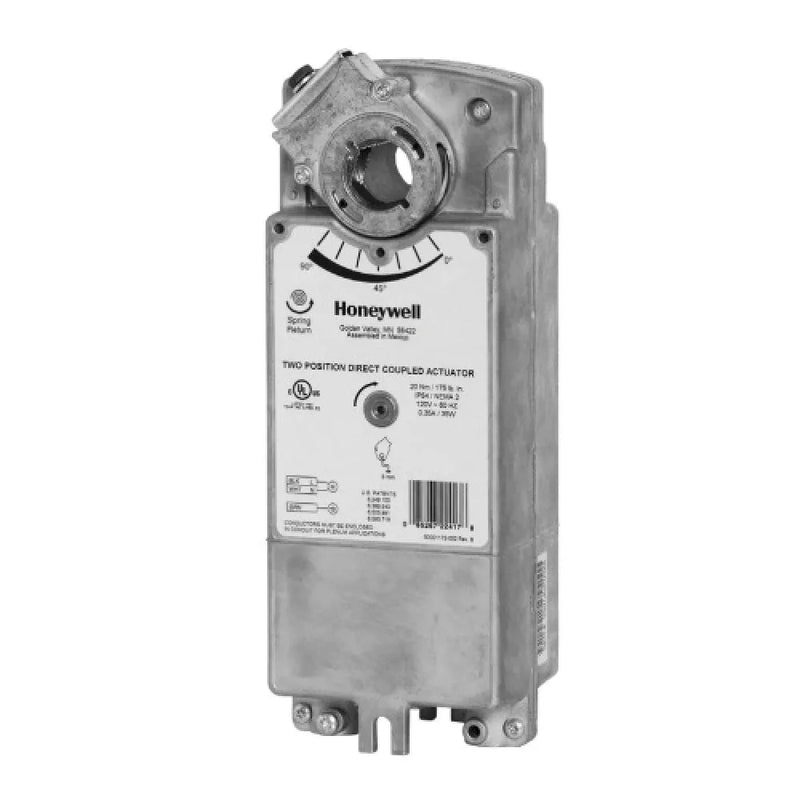

MS8105A1030 Honeywell Damper and Valve Actuator

MS8105A1030 Honeywell Damper and Valve Actuator

by Resideo Technologies Inc
Sold out
$44.28 - $44.28
$44.28
$44.28 - $44.28
$44.28

Honeywell Home Damper and Valve Actuator, MS Series, 24 VAC, 50/60 Hz, 8 VA, Screw Terminal Electrical Connection, 45 s Timing, Aluminum, 44 in-lb Torque, 100 kOhm at 0/2 to 10 VDC, 500 Ohm at 4 to 20 mA Input, 70 dBA Driving, 20 dBA Holding Noise Level, -22 to 149 deg F, NEMA 2 IP54 Enclosure, 7-1/2 in H x 3-5/8 in W x 3-1/8 in D, Modulating Action, On-Off Control, Brushless DC Motor, Direct Mounting, Self-Centering Shaft Adapter, CW, CCW Shaft Rotation, 95 deg Stroke

Availability:
Out of stock
