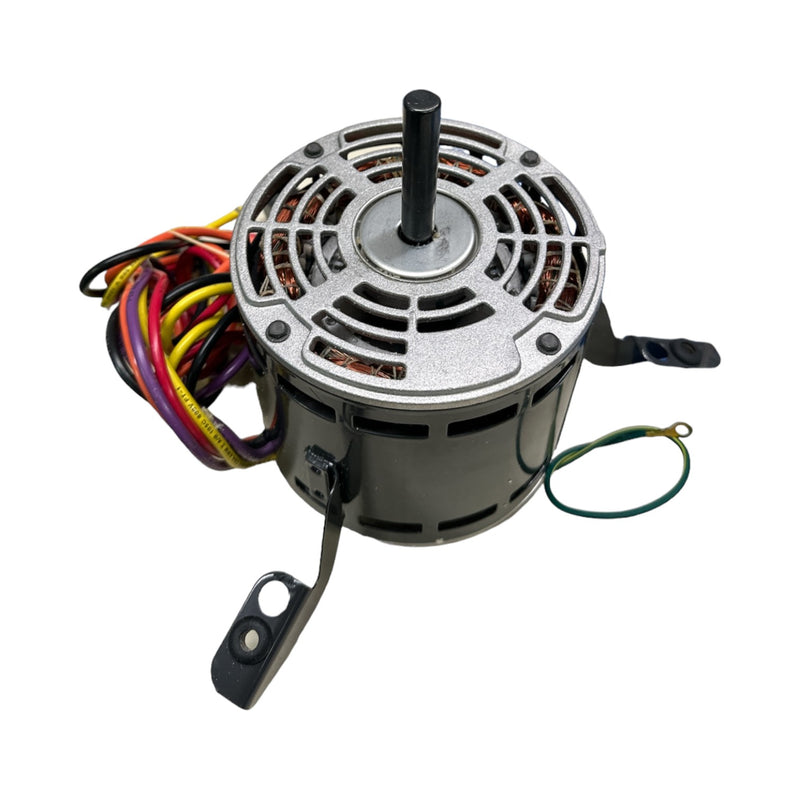

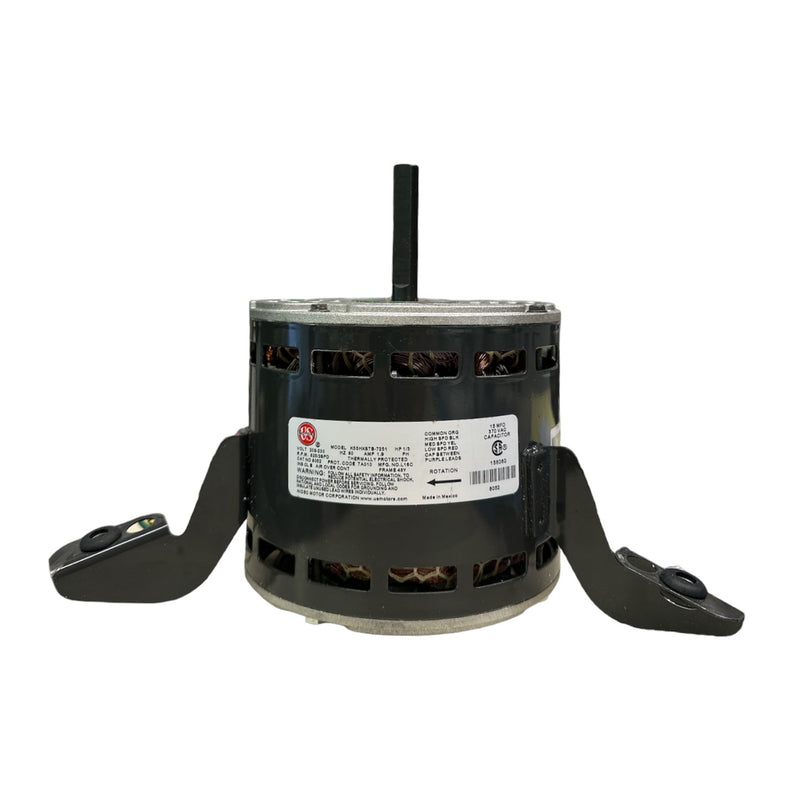

Lennox Ducane Armstrong 65G5901 Replacement Blower Motor

This is a brand new Replacement Blower Motor part # 8052 that is compatible with Lennox Ducane Armstrong Part# 65G5901. This blower motor is a Single Phase, 48Y NEMA Frame Size, Open Air Over Enclosure, SAB Bearing, Bracket Mount, Permanent Split Capacitor Motor



Specifications:

– HP: 1/3
– RPM/Speed: 825/3
– Volts: 230
– Capacitor MFD: 15.0
– Amps: 1.9
– Shaft N: 2.5
– Shell XI: 4.8
– Total C: 7.3

Additional details:

– 1/3 HP, 825 RPM, 1-speed, 208-230V, 1.9 amps
– Shaft size: 1/2″ x 2.5″, rotation CW shaft end
– 5.6″ diameter motor case length 4.81″
– Flex mount with sleeve bearings
– Continuous duty, open-air enclosure, class B insulation, 40C ambient temperature, 36″ leads
