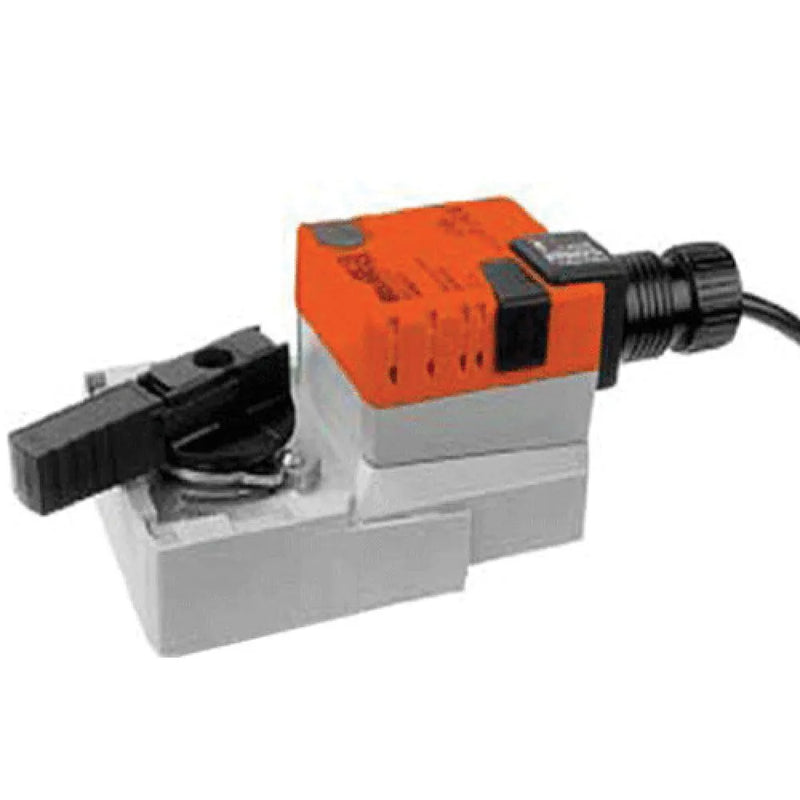

ARB24-SR BELIMO Actuator

BELIMO® Actuator, 24 VAC/VDC, 50/60 Hz, VA Rating: 5 VA, 2.5 W Running, 0.4 W Holding, Voltage Accuracy: +/-20% at 24 VAC, +/-10% at 24 VDC, 180 in-lb Torque, Plenum Cable Connection, Control Signal: Proportional, 2 - 10 VDC or 4 to 20 mA, 90 deg Rotation Angle, 100 kOhm at 0.1 mA, 500 Ohm Input, NEMA 2, IP54 Enclosure, 90 s Timing, <45 dBA Noise Level, -22 to 122 deg F, 3.46 in L x 3.3 in W x 8.5 in H
