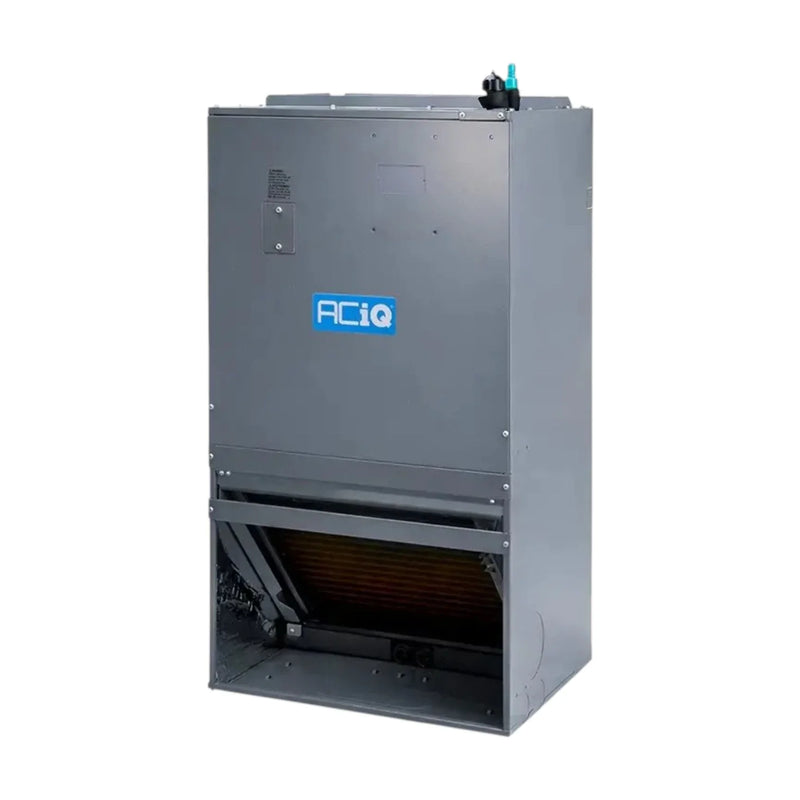

ACiQ ACIQ-36W-WMB 3 Ton Air Handler

The ACIQ Air Handler is meticulously designed for vertical wall or stud mounting, offering versatile installation options.  Encased within a fully insulated, galvanized-steel cabinet, this air handler ensures robustness and longevity.

• Connects to ductwork
• Suitable for use with R454B refrigerants
• Equipped with a fully adjustable TXV for cooling and heat pump operation
• Features a direct-drive, multi-speed motor allowing for air volume variation for both heating and cooling needs
• Sequence-controlled, rust-resistant nickel chromium heating elements available in 3, 5, 8, and 10kw options
• Includes a factory-installed pull-type disconnect for added convenience
• Aluminum tube coils are integrated into all models
• Comes with a thermoplastic drain pan featuring bottom primary and secondary drain connections
• Equipped with a built-in filter rack (filter included) for improved indoor air quality
• Includes a wall-hanging bracket for easy installation
• Tonnage: 2 Ton
• CFM: 1188.24
• Sound Level: 55 dBA
• Electrical: 208/230V | 1Ph | 60Hz
• Min/Max Amperage: 24/40 Amps
• Line Set Size(s): ⅜” | ¾”
• Refrigerant: R-410A & R454B
• Dimensions (H x W x D): 40.04″ x 22.01″ x 19.02″
• Weight: 60 lbs.
