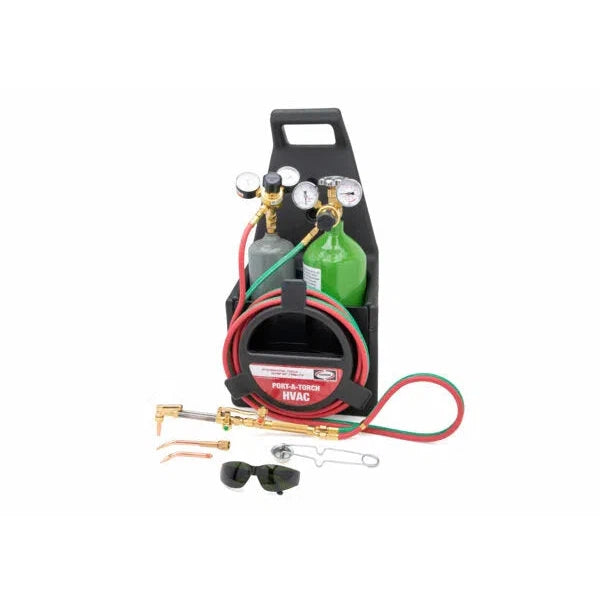

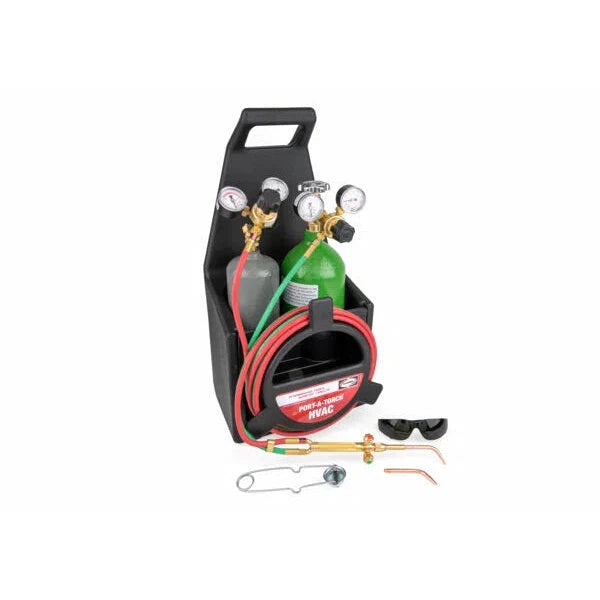

4400175 Harris HVAC Model 19-601-200A Port-A-Torch Kit

4400175 Harris HVAC Model 19-601-200A Port-A-Torch Kit

by Lincoln Electric Company (Harris Products Group)
Sold out
$460.91 - $460.91
$460.91
$460.91 - $460.91
$460.91

HVAC Port-A-Torch® kit with cylinders is made with V-Series threading. This kit can braze up to 1 in. copper tube and weld up to 1/8 in. plate.

DETAILS

The Port-A-Torch HVAC kit contains all the quality equipment needed for brazing, cutting, and welding using all fuel gases/acetylene. The kit includes Harris’ most economical regulators featuring one-piece encapsulated seats for longer service life, easy-to-read dual scale 50mm plastic gauges, large plastic adjusting knob, and a 7-year warranty. The torch handle has silver-brazed twin-tube connections and replaceable FlashGuard check valves. Also, included in the kit is an equal pressure mixer, brazing/welding tips, ANSI-approved safety glasses, handheld ignitor, 3/16” x 12’ hose, 20 cu. ft. oxygen cylinder and 10 cu. ft. MC acetylene cylinder (cylinders shipped empty) packaged in a rugged, molded plastic, hose-reel carrying tote. The kit is capable of cutting up to 4 in. (101.6mm) plate with optional tip(s) and acetylene cylinder; welding up to 1/16” (1.6mm) plate with supplied tips and welding up to 1/2” (12.7mm) plate with optional larger tip(s) and acetylene cylinder. All other components in the kit have a 1-year warranty.

Features

  • Medium-duty Port-A-Torch HVAC kit for brazing, cutting, and welding projects
  • Economical Model 61 regulators with easy-to-read, dual scale 5mm plastic gauges and large plastic adjusting knob
  • The regulators have a one-piece encapsulated seat design with an internal filter and PTFE Teflon® seat to protect them from particulate contamination
  • The Model 19-6A torch handle has silver-brazed twin-tube construction and is equipped with FlashGuard® check valves

What's Included

  • Model 601-15-200A Fuel Gas Regulator - 3000407
  • Model 601-80-540A Oxygen Regulator - 3000412
  • Model 19-6A Torch Handle - 1401136
  • Model H-16-2E Mixer Assembly - 9100787
  • Model 23A90-1 Welding Tip - 1600850
  • 23A90-3 Welding Tip - 1600870
  • Safety Glasses Shade 5 ANSI Z87.1 CE Weld - 4303629
  • Handheld Ignitor - 9004486
  • 3/16 in. x 12 ft. Twin B&B R-Grade Acetylene Hose - 4300155
  • 20 cu.ft. Oxygen Cylinder (Green) - 8800337
  • 10 cu. ft. Acetylene MC Cylinder (Gray) - 8800336
  • (Cylinders shipped empty)
  • Port-A-Torch Hose Reel Black Carrying Tote - 8855033
  • Trilingual Kit Manual - 9505643
