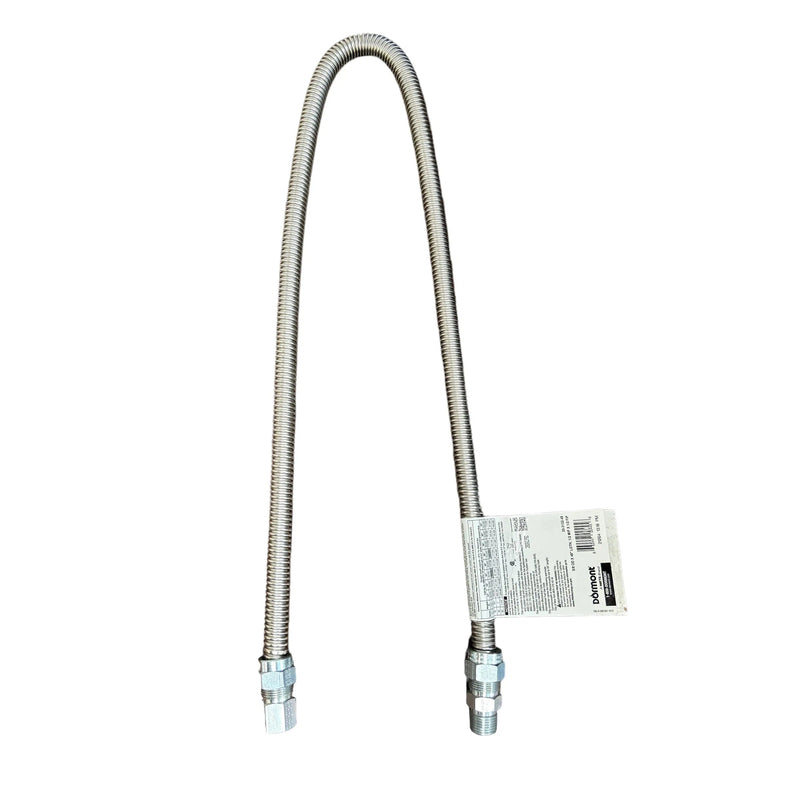

30-3132-48 1/2" ID (5/8" OD) Stainless Steel Gas Connector 1/2" MIP x 1/2" FIP (48" Length)

30-3132-48 1/2" ID (5/8" OD) Stainless Steel Gas Connector 1/2" MIP x 1/2" FIP (48" Length)

Features:
Tubing - Annealed, 304 stainless steel (ASTM A240)
Flare nuts - Brass or plated steel
Adapters - Brass or plated steel
Meets SAE J512 standard - 45° flare (with the exception of 15/16" - 16 threads of 5/8" OD)
Optional coating - Heavy-duty, antimicrobial, hot-dipped gray PVC (for 1/2" OD (21 series) and 5/8" OD (31 series only). Coating will not hold a flame.
Approved for indoor and outdoor use
Temperature rating with adapters: -40°F to 150°F
Temperature rating with valves: -40°F to 125°F
100% Factory leak tested
When installing a new appliance or when an existing appliance is moved to a new location a NEW gas connector must be used per manufacturer’s installation instructions and per product standards ANSI Z21.24/CSA 6.10 and ANSI Z21.75/CSA 6.27.
Avoid repeated bending, flexing, or extreme vibration. Do not use on portable gas generators due to excessive vibration.

Applications:
Indoor
Range
Dryer
Water Heater
Gas Fireplace
Garage Heater
Wall Heater
Tankless Water Heater
Furnace
Space Heaters

Outdoor
Rooftop Units
Outdoor Dryer
Stationary Outdoor Grills
Gas Fire Pits

Manufactured Home
Mobile Home Gas Meter
Cross-over Gas Connection Kits
