24WCX12-AB 2 Ton Thru-the-Wall First Company Split Air Conditioner Condensing Unit
23800 BTU/Hr Cooling, 208/230 VAC 60 Hz 1-Phase, 1/4 HP, R410A Refrigerant, Thru-the-Wall Installation, Split System, Condensing Unit

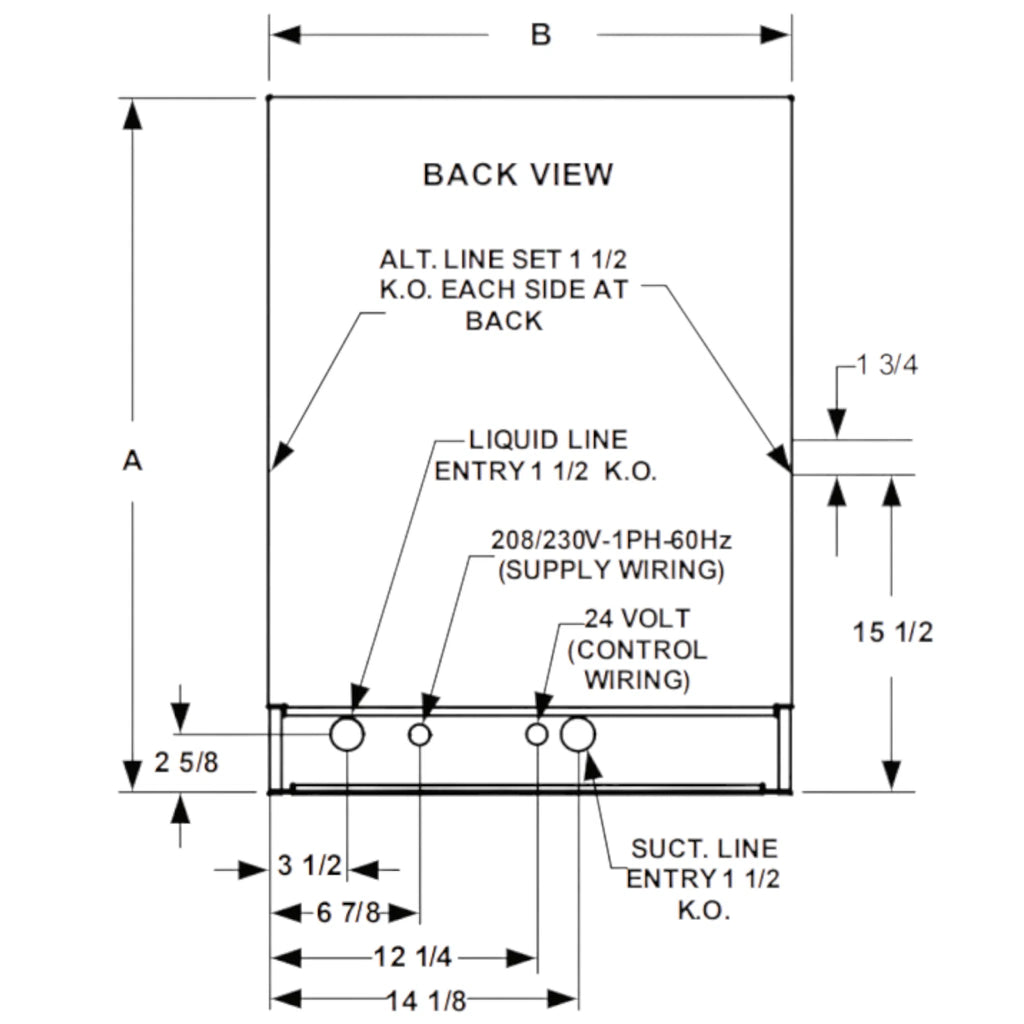

Height (A) : 32"
Width (B) : 24"
Depth (C): 19"
• Factory charged with R-410A refrigerant (charge will need to be field-adjusted)
• Unique cabinet design - unit side panels fit inside rather than outside the base pan to improve water containment on the sides of the cabinet
• Extra-high efficiency scroll R-410A compressor
• High pressure switch
• Propeller type fan - Moves more air over the condenser coil at lower operating watts than standard “squirrel cage” type blower
• Sloped base pan - Positive water drainage from the unit to the building exterior
• Plastic coated coil guard
• Filter / drier
