30WCXA12-BB 2.5 Ton Thru-the-Wall First Company Split Air Conditioner Condensing Unit

30WCXA12-BB 2.5 Ton Thru-the-Wall First Company Split Air Conditioner Condensing Unit

by First Company Products
Sold out
$2,475.00 - $2,475.00
$2,475.00
$2,475.00 - $2,475.00
$2,475.00

27800 BTU/Hr Cooling, 208/230 VAC 60 Hz 1-Phase, 1/3 HP, R410A Refrigerant, Thru-the-Wall Installation, Split System, Condensing Unit

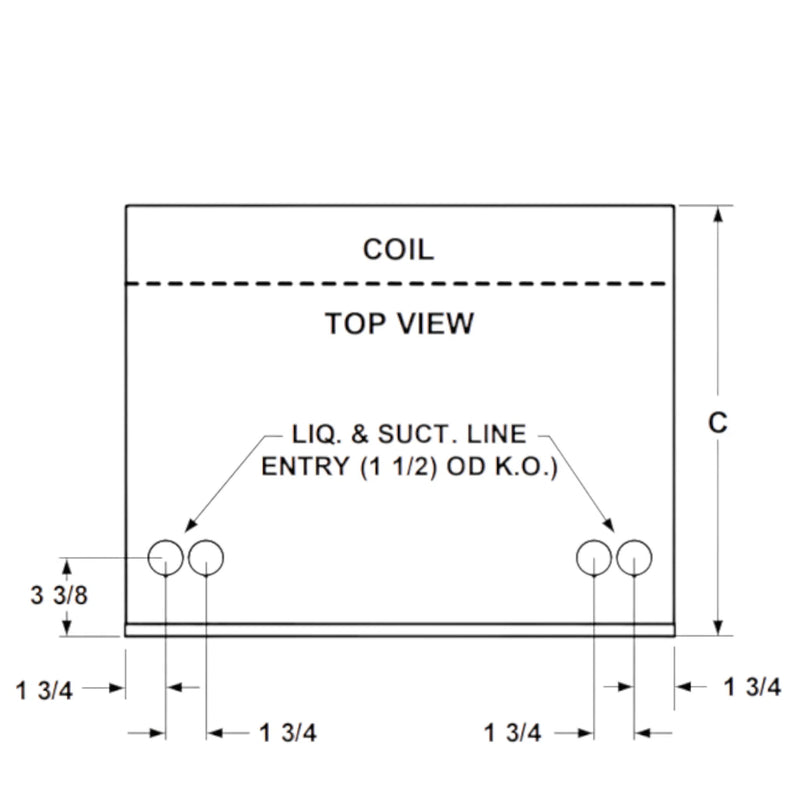

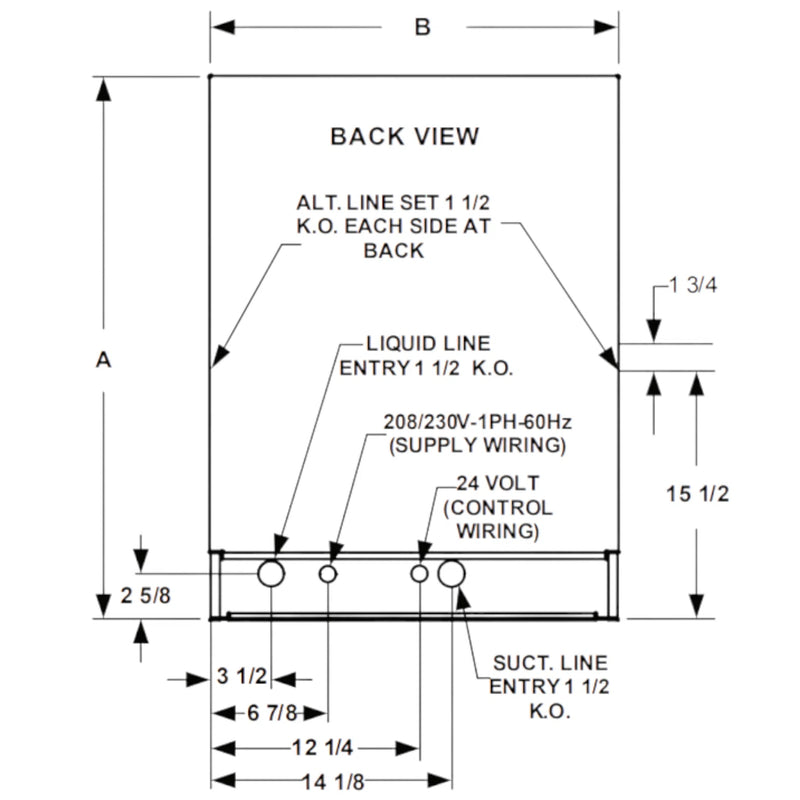

Height (A) : 28"

Width (B) : 25-3/4"

Depth (C): 19"

Features:

• Factory charged with R-410A refrigerant (charge will need to be field-adjusted)

• Unique cabinet design - unit side panels fit inside rather than outside the base pan to improve water containment on the sides of the cabinet

• Extra-high efficiency scroll R-410A compressor

• High pressure switch

• Propeller type fan - Moves more air over the condenser coil at lower operating watts than standard “squirrel cage” type blower

• Sloped base pan - Positive water drainage from the unit to the building exterior

• Plastic coated coil guard

• Filter / drier

Product Manual

Install Manual
