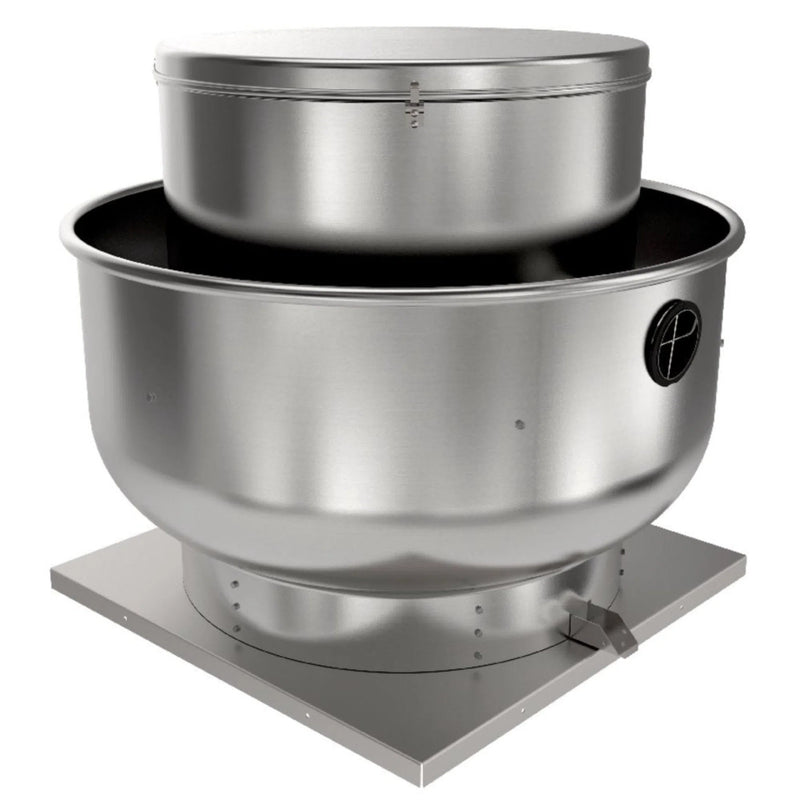

Restaurant Upblast Commercial Hood Exhaust Fan 34 x 34 Base 1 HP 6414 CFM 3 PHASE

Restaurant Upblast Commercial Hood Exhaust Fan 34 x 34 Base 1 HP 6414 CFM 3 PHASE

by Systemair AB (Fantech)
Ships LTL/Freight ONLY
Sold out
$2,100.00 - $2,100.00
$2,100.00
$2,100.00 - $2,100.00
$2,100.00

This is a Fantech 5BDU24FX belt drive fan 1 HP 3 Phase that gives you 6414 CFM at 0.00" Static Pressure. This fan comes with the shell, motor and drive pack separate to be assembled in the field.

208v / 230v / 460v

3 Phase

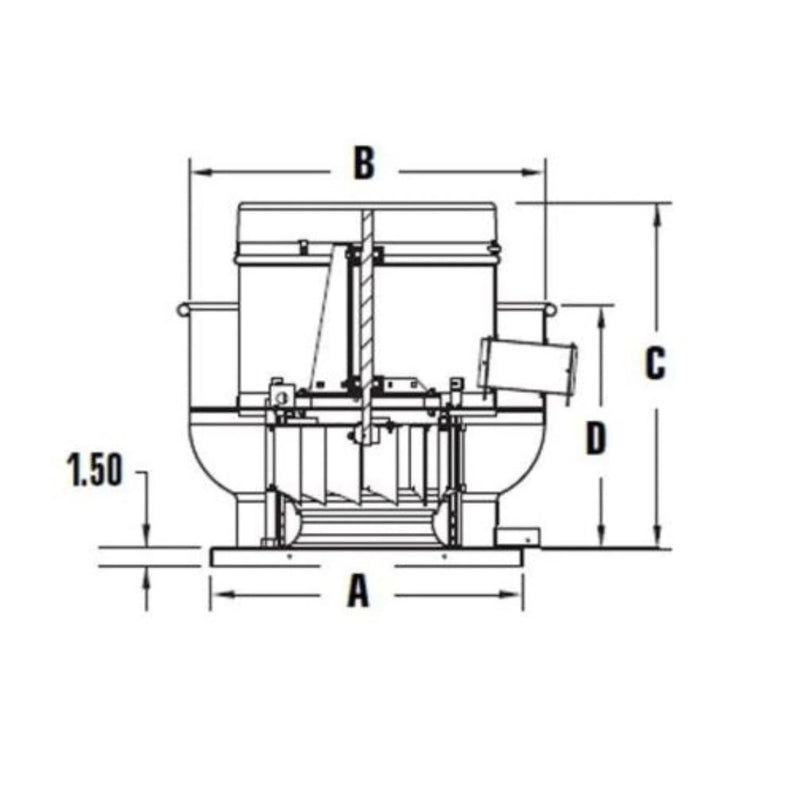

Dimensions *See diagram photo

(A) 34" x 34" BASE

(B) 42 3/8"

(C) 33"

(D) 24 1/2"



Upblast discharge design

Suitable for wall application

Spun aluminum construction with steel support braces
Weather resistant aluminum windband, motor enclosure, and cover
Ball bearing motors and variable pitch drives are packed separately when ordered with ventilators
Backward inclined aluminum fan wheel
Externally cooled motor compartment
Inlet temperatures up to 300°F
Permanently lubricated ball bearings
Motor and wheel are easily detachable without removing ventilator from curb
Junction box mounted in motor compartment
Uni-Mount motor structure
A continuous venturi to windband weld virtually eliminates grease leakage
Fully rolled windband bead for added strength, stability and ease of transport
Welded curb cap corners eliminate water entry into ducts or building
