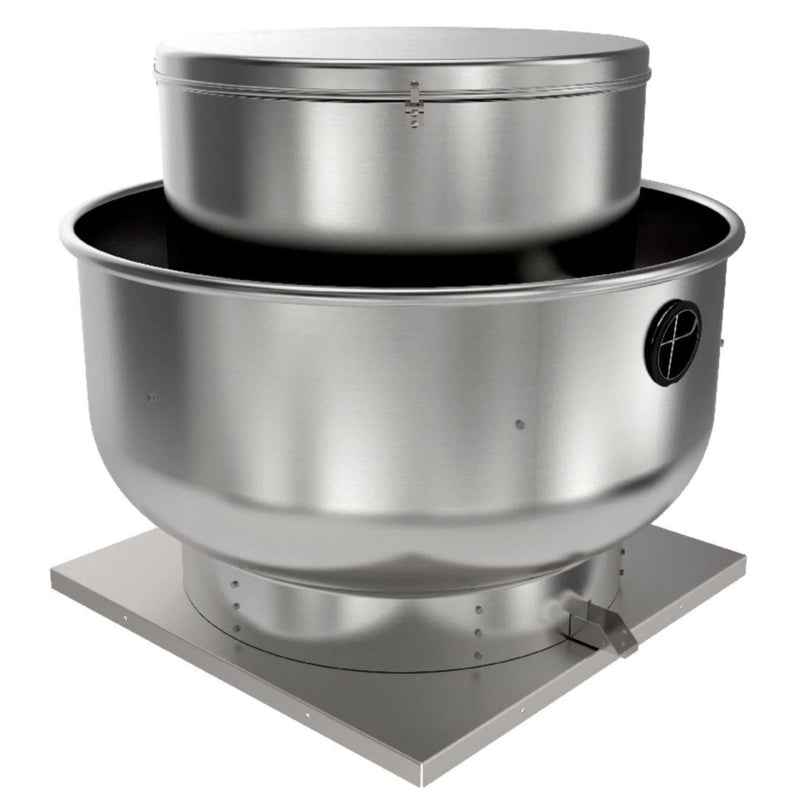

5BDU20EX Restaurant Upblast Commercial Roof Exhaust Fan 30x30 3/4 HP 4251 CFM 3 Phase

3/4 HP, 208/230/460v, 3 Phase, 20" Diameter wheel, 4,251 CFM, Upblast Exhaust Fan

This fan comes with the shell, motor and drive pack separate to be assembled in the field.

Belt-drive upblast ventilators are designed for roof mounted exhaust of commercial and industrial buildings. Suitable for roof and wall application. Durable spun aluminum construction with steel support braces. Backward inclined aluminum fan wheel. Motor and wheel are easily detachable without removing ventilator from curb.

• All ventilators are listed UL 705 for electrical and UL 762 for restaurant exhaust in USA only
• Inlet temperatures up to 300°F
• Fully welded wind band
• Externally cooled motor compartment

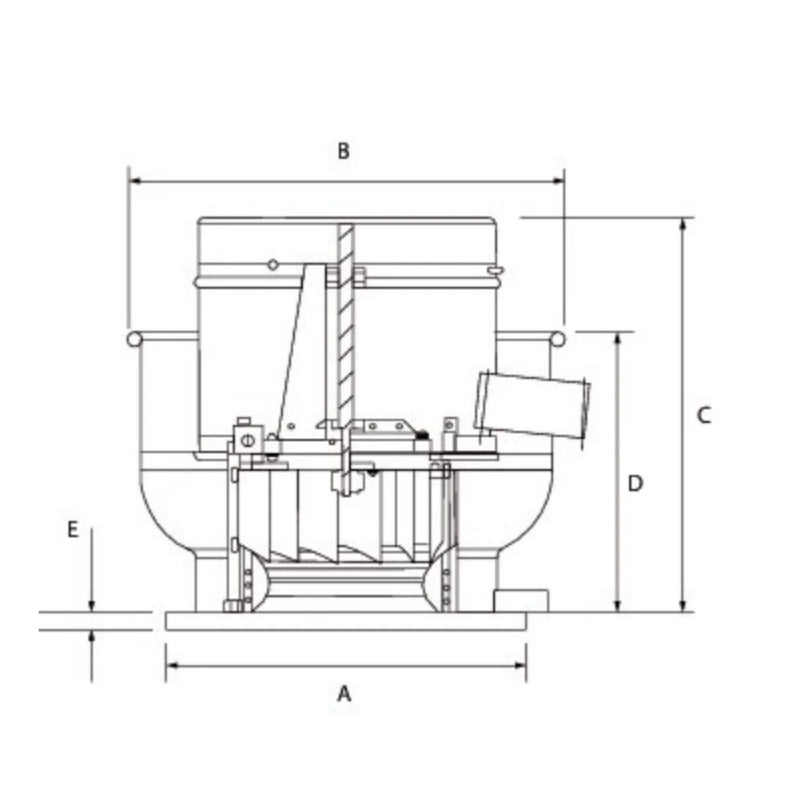

Dimensions: *See Diagram Photo

Dimension A: 30"

Dimension B: 36.5"

Dimension C: 30.25"

Dimension D: 22"

Dimension E: 1 1/2"
